함안정조타기
기존의 조타기, 함안정기, 자동항해장치를 통합한 함안정조타기로 조타 기능 또는 조타 기능과 동시에 함안정 기능을 수행하며 GPS 장비와 연동 자동 항해 기능을 수행합니다.
more워터젯
선체 내부에 thrust bearing 소재 별도의 상가 없이 유지 보수 - 비용의 최소화 구현
LIPSTRONIC/J 7000 JOYSTICK CONTROL SYSTEM : 선체 내부에 thrust bearing 소재 별도의 상가 없이 유지 보수 - 비용의 최소화 구현
함안정기
스페코는 구축함용 함 안정기를 생산합니다. 함 안정기는 선박의 움직임 특히횡요(롤링)을 줄여 안정된 운항을 도와줍니다. 이 함안정기 시스템은 요트, 페리, 여객선 뿐만 아니라 컨테이너선 및 대형 군함에도 이용됩니다.
moreKDX-III 함안정 조타기 구성도
KDX-III 함안정 조타기 주요 구성품
적용사례
Reference List
함명 | 배수량 | 진수 | 건조 |
FFX-II 4번함 | 2,800 ton | 2020 | 현대중공업 |
FFX-II 3번함 | 2,800 ton | 2020 | 현대중공업 |
FFX-II 2번함 | 2,800 ton | 2019 | 대우조선해양 |
ATX | 4,500 ton | 2018 | 현대중공업 |
FFX-II 1번함 | 2,800 ton | 2017 | 대우조선해양 |
LST-II 4번함 | 4,500 ton | 2017 | 현대중공업 |
LST-II 3번함 | 4,500 ton | 2016 | 현대중공업 |
LST-II 2번함 | 4,500 ton | 2015 | 현대중공업 |
MLS-II | 3,000 ton | 2015 | 현대중공업 |
FFX 6번함 | 2,300 ton | 2015 | STX조선해양 |

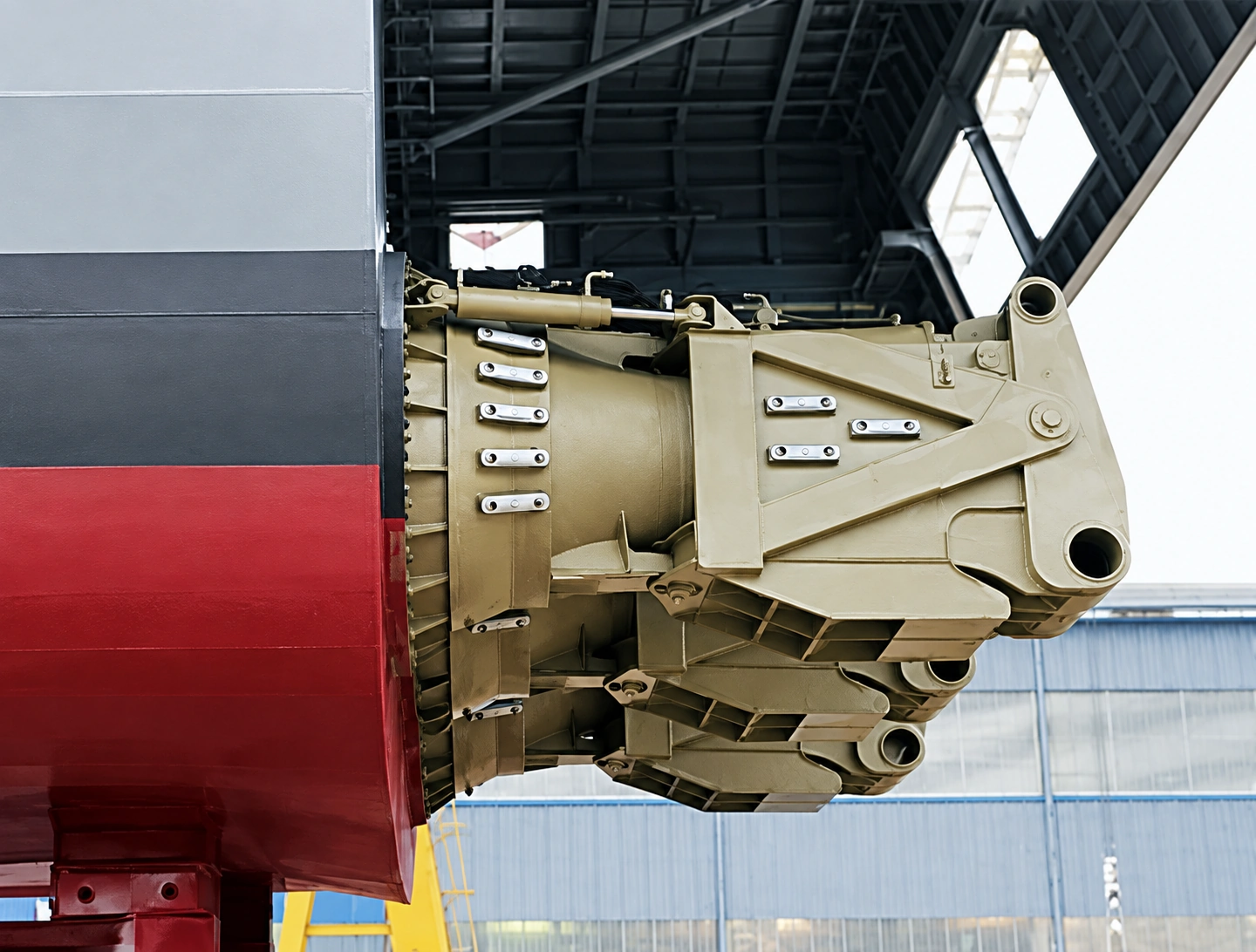

워터젯
워터젯 특징 및 장점
· The waterjets defined in the above table are the most often used waterjet sizes.
· Intermediate sizes for the above range like a LJ160E or LJ175E size and the data for the range up to the LJ400E size are available on request.
· The data in brackets is the maximum outboard length in full reverse and steering.
· Inboard length may vary depending on the optimized shape of the inlet duct.
· Transom flange connections can be custom designed. Smaller transom flange diameters are possible if the requirements for the interface with the hull are met.
· Weights are calculated based on jet power density. Please contact us for the weights of the jet sizes above the LJ99E based on the power density of your design.Weights include an inboard bearing, but exclude hydraulic powerpacks and oil lubrication sets.
· Water in the inlet duct is calculated to the transom and based on the standard shaft height.
적용사례
Reference List
함명 | 배수량 | 진수 | 건조 |
---|---|---|---|
LPH 2번함(2 pair) | 10,000 ton | 2018 | 한진중공업 |
말레이시아 TRV | 1,000 ton | 2012 | 대우조선해양 |
PKG-A 1번함 | 500 ton | 2007 | 한진중공업 |
KDX-II 6번함 | 4,500 ton | 2006 | 현대중공업 |
KDX-II 5번함 | 4,500 ton | 2006 | 대우조선해양 |
LPH (2 Pair) | 10,000 ton | 2005 | 한진중공업 |
KDX-II 4번함 | 4,500 ton | 2005 | 현대중공업 |
KDX-II 3번함 | 4,500 ton | 2003 | 대우조선해양 |
KDX-II 2번함 | 4,500 ton | 2003 | 현대중공업 |
KDX-II 1번함 | 4,500 ton | 2002 | 대우조선해양 |
KDX-I 3번함 | 3,900 ton | 1998 | 대우조선해양 |
KDX-I 2번함 | 3,900 ton | 1997 | 대우조선해양 |
